Gerneral Overview

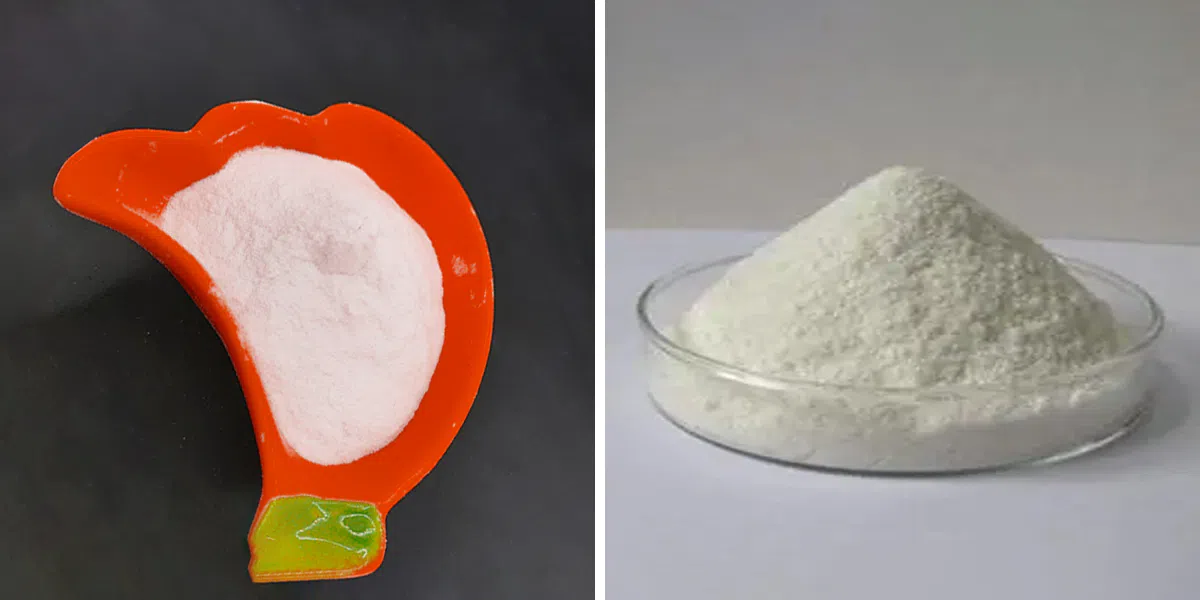

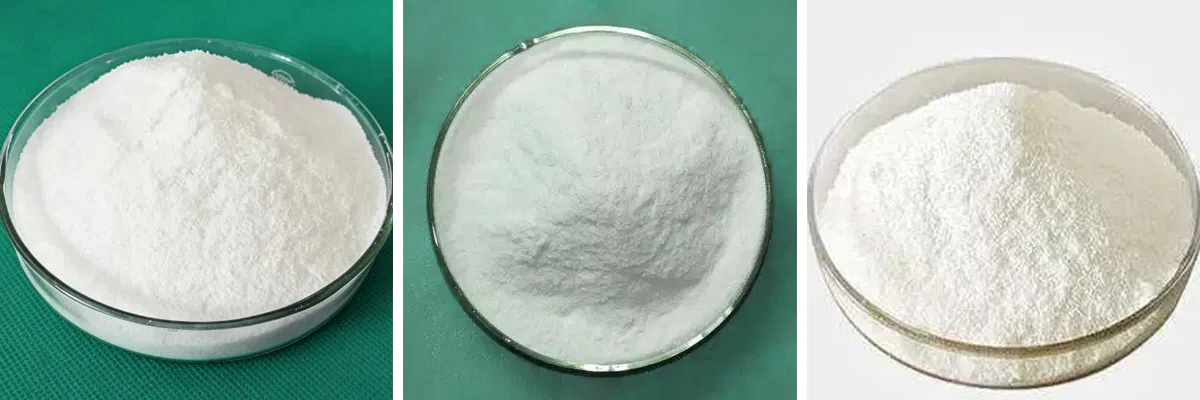

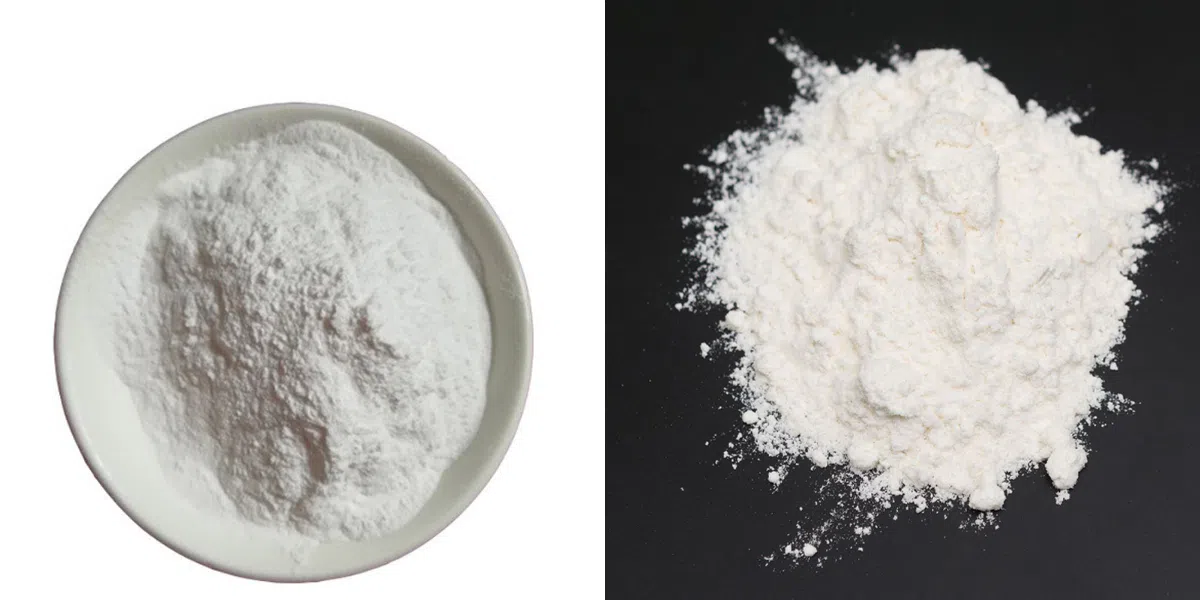

Drilling grade CMC-HV is a high-viscosity thickening anionic cellulose ether specialized for low-solid drilling fluids. Our drilling mud thickener significantly increases plastic viscosity and yield point.
Core Product Advantages
1. High Thickening & Shear Boosting Efficiency: High thickening efficiency greatly increases viscosity and yield point at low dosage, suitable for low-solid and low-density drilling fluids.
2. Enhanced Cuttings Suspension & Carrying: Significantly enhances cuttings carrying and suspension capacity, prevents cuttings settlement during shutdown and ensures clean bottom hole.
3. Auxiliary Fluid Loss Reduction: Provides certain fluid loss effect while viscosifying, improves filter cake quality and assists wellbore stability.
4. Low-solid System Adaptation: Optimized for low-solid drilling fluids, maintains excellent viscosifying effect under low solid content conditions.
Product Specifications
Drilling Grade sodium carboxymethyl cellulose CMC-HV is a high-viscosity thickening anionic cellulose ether and a cost-effective rheology modifier specialized for low-solid drilling fluids. With high thickening efficiency, it can significantly increase the plastic viscosity and yield point of drilling fluids, enhance drill cuttings suspension and carrying capacity, and meanwhile provides basic fluid loss effect to improve filter cake quality and assist in wellbore wall protection. With good compatibility with conventional drilling fluid additives, it is applicable to low-solid, low-density fresh water drilling fluids in shallow well sections, as well as well washing fluids and completion fluid systems, meeting the cuttings carrying and wellbore stability requirements of conventional shallow well drilling.
Key Technical Specifications
| Item | Standard Index |
| Appearance | White to slightly yellow powder |
| Degree of Substitution (DS) | 0.6 – 0.9 |
| Viscosity (2% aqueous solution, 25℃) | 8000 – 20000 mPa·s |
| pH Value (1% aqueous solution) | 6.0 – 8.5 |
| Loss on Drying | ≤ 10.0 % |
| Active Content (on dry basis) | ≥ 70.0 % |
| API Fluid Loss (fresh water standard base slurry) | ≤ 25 mL |
| Temperature Resistance | ≤ 110 ℃ |
| Fineness | ≥ 98 % passing 80 mesh sieve |

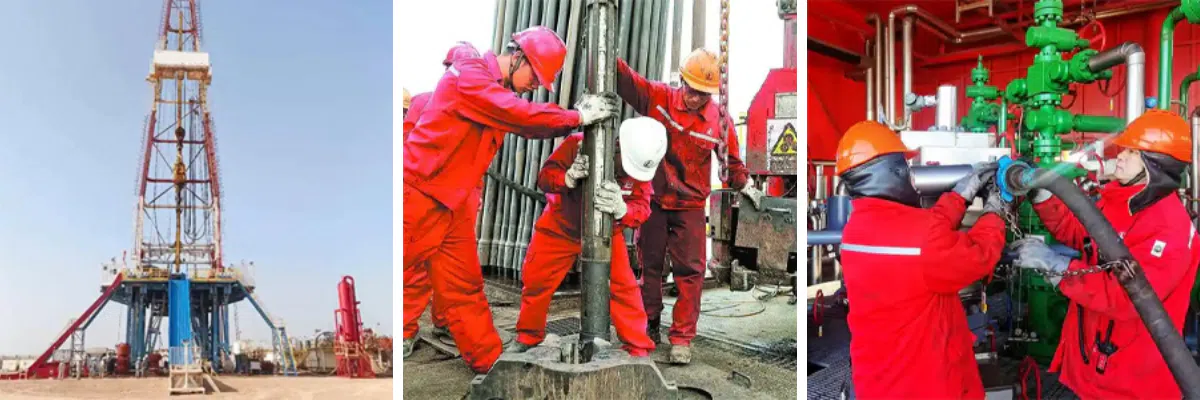

Application Scenariors
1. Shallow Section Low-solid Drilling Fluid: For viscosifying and cuttings carrying of low-density drilling fluid.
2. Washing & Completion Fluid: For thickening and suspension in well washing and completion operations.
3. Collapse-prone Formation Drilling: Assists in stabilizing wellbore and reducing collapse risk.
4. Shallow Well Drilling: For rheology control of conventional shallow well drilling.
Company Strength
Shandong LUFA New Material Group. is a professional manufacturer specializing in R&D, production and sales of cellulose ether products including hydroxypropyl methyl cellulose, sodium carboxymethyl cellulose and polyanionic cellulose. Established in 2009, we cover an area of 20,800 square meters with an annual output of over 30,000 tons. Our products have passed CE, FCC, RoHS and REACH certifications. Backed by a professional R&D team and strict quality control system, we adhere to the philosophy of "Quality First, Customer Supreme" and provide reliable cellulose ether products for global customers.
Packaging & Shipping
Packaging: Standard 25kg paper-plastic composite bag with inner moisture-proof film; 1000kg jumbo bag is optional. Customized packaging with your own logo is supported.
Shipping: We support sea freight (FCL/LCL), land transportation and international express for samples. All products undergo strict inspection before shipment to ensure good condition.
Delivery Time: 10-12 working days for regular stock orders; 15-20 working days for customized orders.
Transport Protection: Pallet reinforcement and stretch film wrapping are applied to avoid moisture and damage during transportation.
Our Service
Pre-sales Service: Free samples within 500g are available; 1-on-1 technical guidance for product selection; complete technical documents including TDS, SDS and COA are provided.
In-sales Service: Real-time order progress tracking; customized specification adjustment is supported; full assistance for commodity inspection and customs declaration.
After-sales Service: Professional technical team follows up application problems; quick response for quality issues; lifelong technical consultation support.
