Gerneral Overview

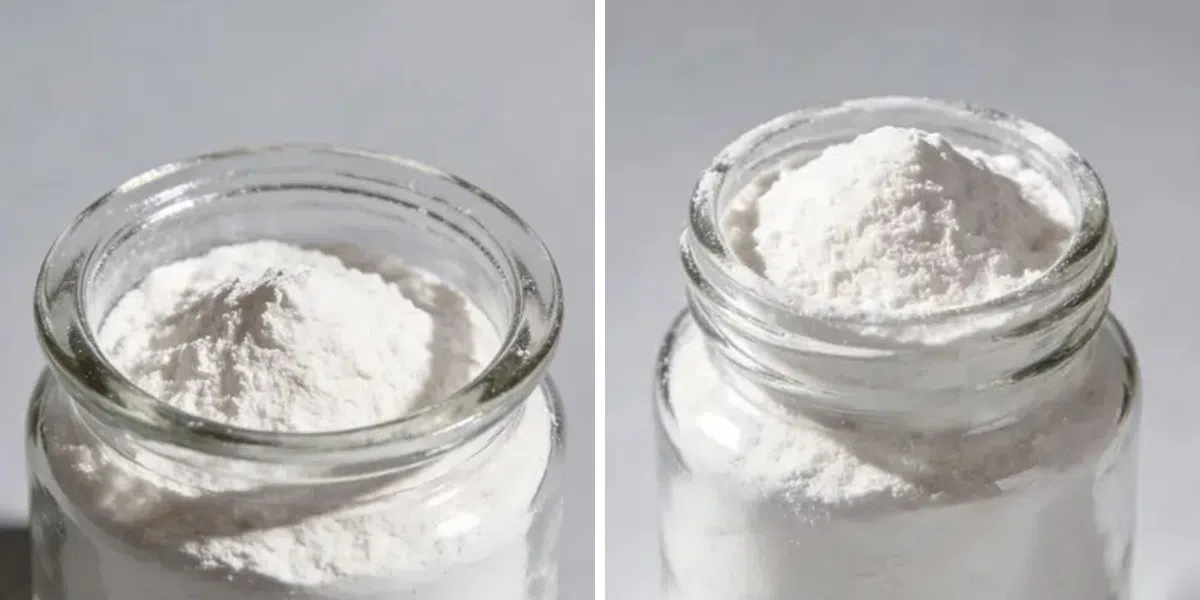

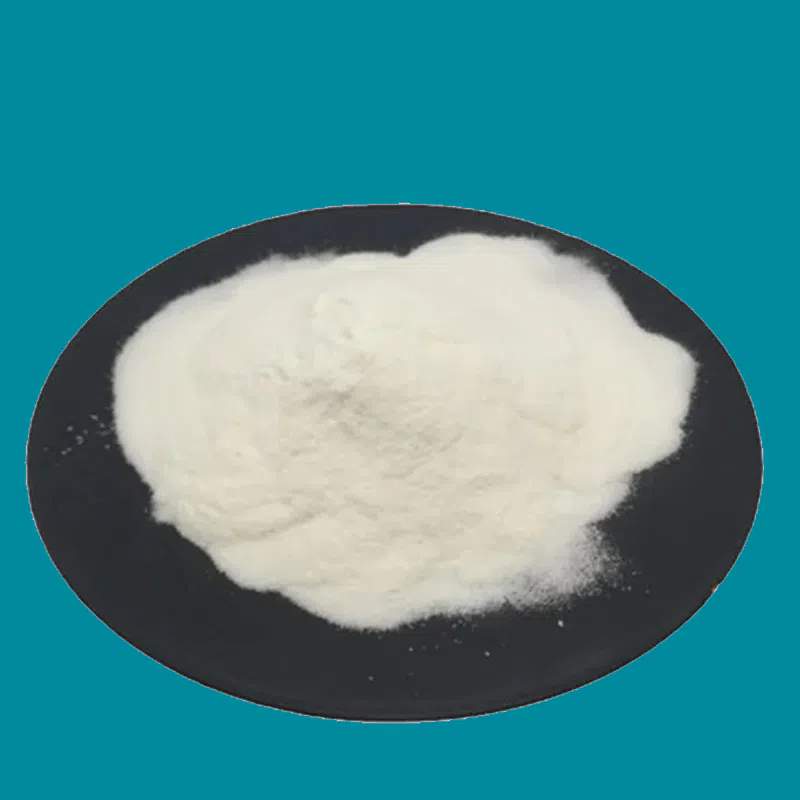

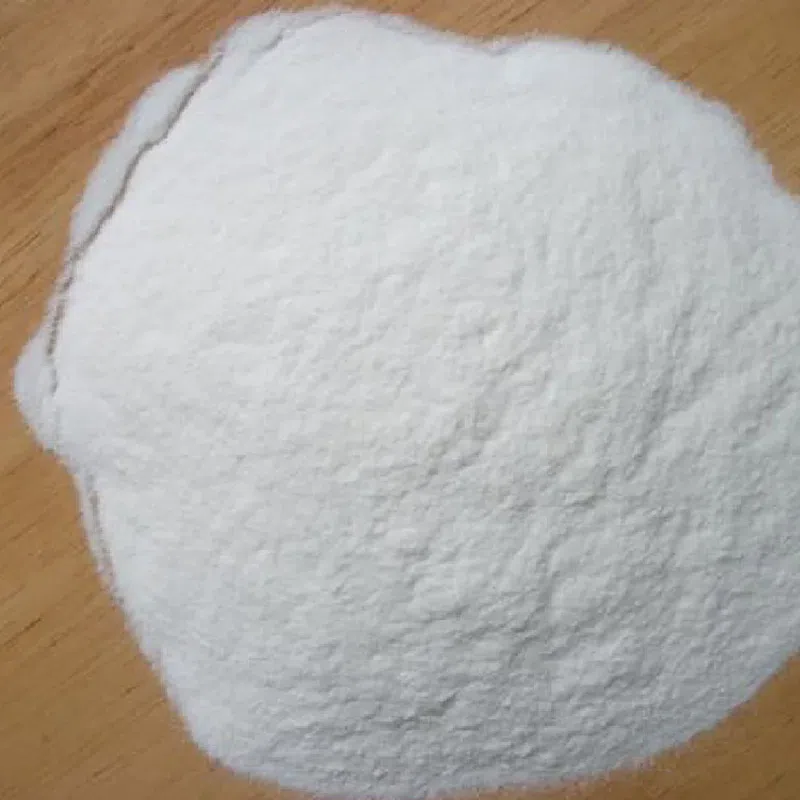

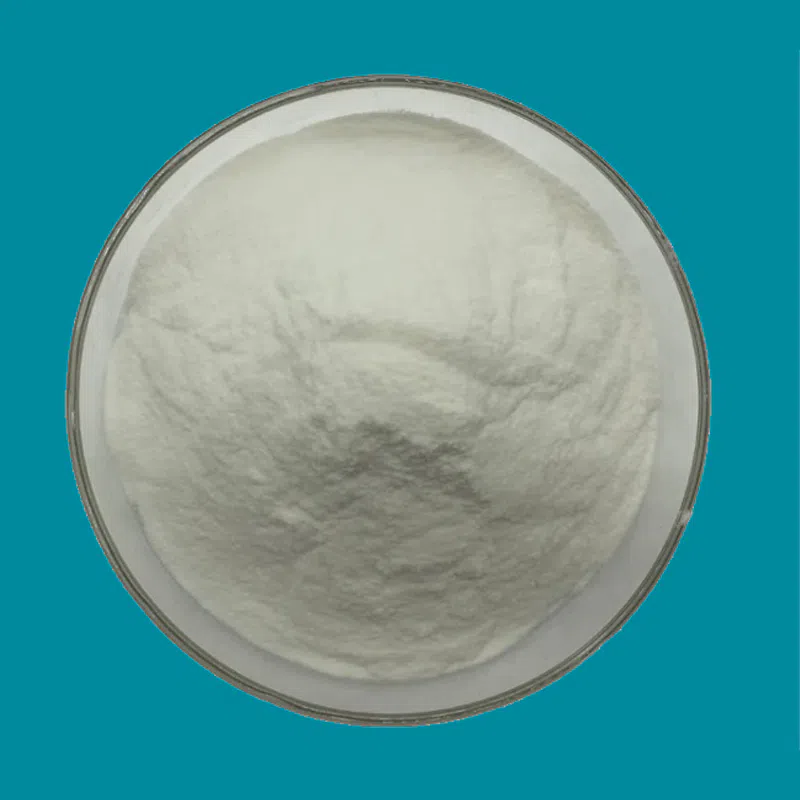

Drilling fluid grade PAC-LV is a low-viscosity high-purity polyanionic cellulose for high-density drilling fluids. Our pac powder features high-efficiency fluid loss control, especially suitable for deep and horizontal wells.
Core Product Advantages
1. High-efficiency Fluid Loss Control: High and uniformly distributed degree of substitution forms a thin, compact and tough filter cake, delivers low API fluid loss and reduces filtrate invasion into formations.
2. Minimal Impact on Rheology: Barely increases drilling fluid viscosity, enables precise control of equivalent circulating density, and adapts to high-density high-solid systems.
3. Excellent Temperature & Salt Resistance: Withstands temperature up to 150℃, excellent salt and calcium tolerance, adapts to all kinds of water-based drilling fluids such as fresh water, seawater and saturated brine.
4. Shale Hydration Inhibition: Inhibits shale hydration swelling, encapsulates drill cuttings, maintains wellbore stability and reduces downhole complications.
Technical Parameters
Drilling fluid grade polyanionic cellulose PAC-LV is a low-viscosity, high-purity anionic cellulose ether designed for high-density, high-solid water-based drilling fluid systems. It features high-efficiency fluid loss control with minimal impact on drilling fluid viscosity, enabling precise control of equivalent circulating density. With a high and uniformly distributed degree of substitution, it delivers excellent salt resistance, calcium resistance and temperature resistance, forms a thin, compact and tough filter cake to effectively reduce fluid loss, and inhibits shale hydration swelling while encapsulating drill cuttings. It has good compatibility with various drilling fluid additives, and is applicable to all kinds of water-based drilling fluids such as fresh water, seawater and saturated brine, especially suitable for working conditions with strict rheological control requirements like deep wells and horizontal wells.
Key Technical Specifications
| Item | Standard Index |
|---|---|
| Appearance | White to off-white free-flowing powder |
| Degree of Substitution (DS) | ≥ 0.90 |
| Apparent Viscosity (1% aqueous solution, 25℃) | ≤ 50 mPa·s |
| pH Value (1% aqueous solution) | 6.0 – 8.5 |
| Loss on Drying | ≤ 10.0 % |
| Purity (on dry basis) | ≥ 95.0 % |
| API Fluid Loss (fresh water standard base slurry) | ≤ 16 mL |
| Temperature Resistance | ≤ 150 ℃ |
| Fineness | ≥ 95 % passing 100 mesh sieve |

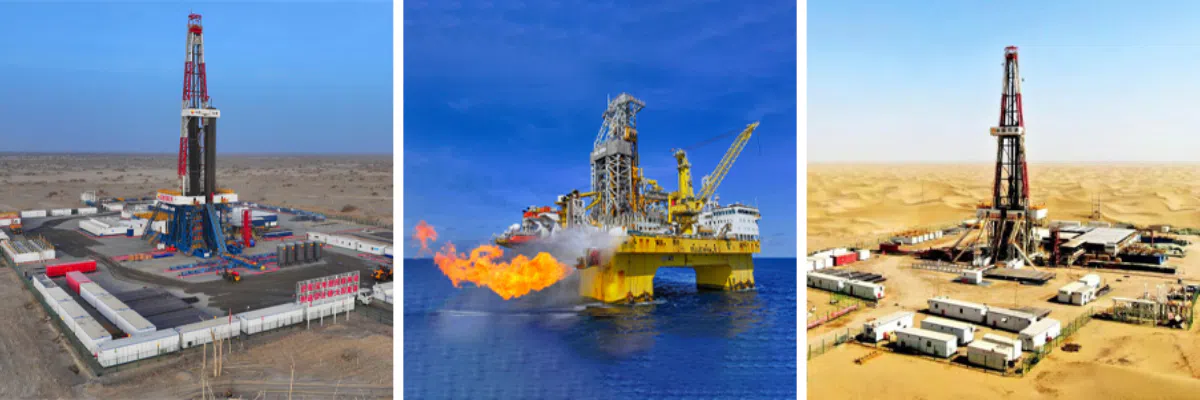

Application Scenariors
1. Deep & Ultra-deep Wells: For fluid loss control of high-temperature deep well drilling fluids.
2. Horizontal & Directional Wells: For drilling operations with strict rheological control requirements.
3. Seawater / Saturated Brine Mud: For high-salinity formation drilling fluid systems.
4. High-density Drilling Fluid: For filtration control of high-solid high-density drilling fluids.
Company Strength
Shandong LUFA New Material Group. is a professional manufacturer specializing in R&D, production and sales of cellulose ether products including hydroxypropyl methyl cellulose, sodium carboxymethyl cellulose and polyanionic cellulose. Established in 2009, we cover an area of 20,800 square meters with an annual output of over 30,000 tons. Our products have passed CE, FCC, RoHS and REACH certifications. Backed by a professional R&D team and strict quality control system, we adhere to the philosophy of "Quality First, Customer Supreme" and provide reliable cellulose ether products for global customers.
Packaging & Shipping
Packaging: Standard 25kg paper-plastic composite bag with inner moisture-proof film; 1000kg jumbo bag is optional. Customized packaging with your own logo is supported.
Shipping: We support sea freight (FCL/LCL), land transportation and international express for samples. All products undergo strict inspection before shipment to ensure good condition.
Delivery Time: 10-12 working days for regular stock orders; 15-20 working days for customized orders.
Transport Protection: Pallet reinforcement and stretch film wrapping are applied to avoid moisture and damage during transportation.
Our Service

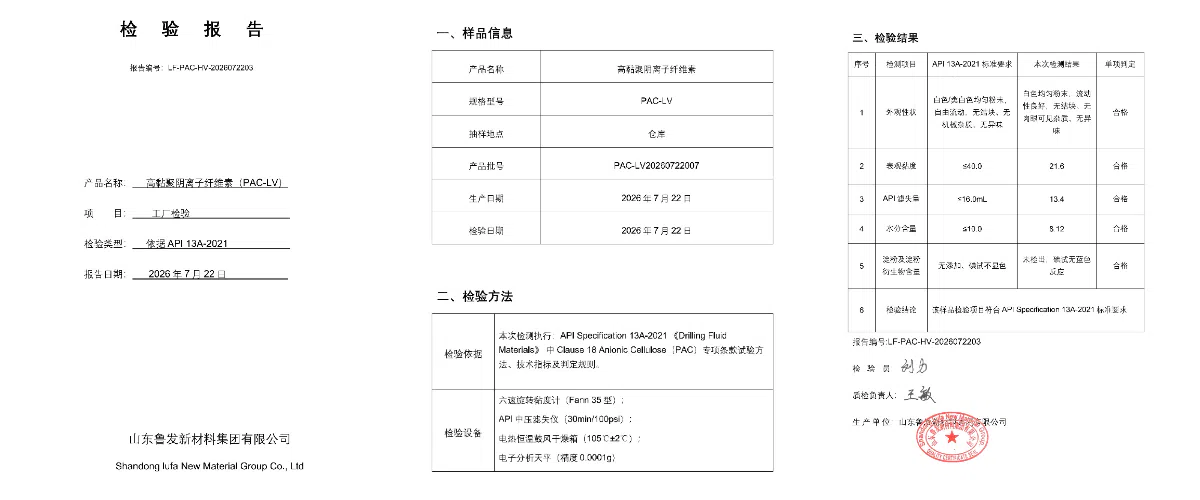

Pre-sales Service: Free samples within 500g are available; 1-on-1 technical guidance for product selection; complete technical documents including TDS, SDS and COA are provided.
In-sales Service: Real-time order progress tracking; customized specification adjustment is supported; full assistance for commodity inspection and customs declaration.
After-sales Service: Professional technical team follows up application problems; quick response for quality issues; lifelong technical consultation support.
